| Quantity: | |
|---|---|
| BACKPACK BRUSH CUTTER | |||||||
| Model No: | Gasoline Brush Cutter | Cutter: | Straight Metal Blade | ||||
| Type: | Backpack Brush Cutter | Power Source: | Petrol/Gas | ||||
| Transmittal mode: | Clutch,hard shaft drive, hard shaft plus soft shaft drive | Reduction ratio: | 17:22 | ||||
| Blade rotation direction: | Blade rotation direction: | Blade diameter: | 25.5CM | ||||
| Hard shaft length (mm): | 1330/1530 | Length of aluminum tube(mm): | 1300/1500 | ||||
| Pole Diameter: | 26/28mm | Cutting Type: | Swing Plastic Blade, Straight Metal Blade, Filament | ||||
| BLADE: | Weeder,tiller,saw,trimmer,2T Blade,3T Blade,40T Blade,80T Blade,harvestor,Grainlifter (a set of machine inclued 1 piece 80T Blade) | ||||||
| ENGINE (4 MODEL CAN MATCH WITH MACHINE) | |||||||
| ENGINE MODEL | DISPLACE | ENGINE | MAX POWER | FUEL MINING RATIO | CARBURETOR | START MODE | FUEL TANK CAPACITY(L) |
| 1E40F-5 | 42.7CC | Air-cooled 2 stroke engine | 1.3KW | gasoline mixed with lubricating oil ratio of 25:1) | Diaphragm | Recoil starter | 1.2L |
| 1E44F | 52CC | Air-cooled 2 stroke engine | 1.65KW | gasoline mixed with lubricating oil ratio of 25:1) | Diaphragm | Recoil starter | 1.2L |
| 139F | 31CC | Air-cooled 4 stroke engine | 0.8KW | Diaphragm | Recoil starter | 0.6L | |
| GX35C | 35.8CC | Air-cooled 4 stroke engine | 1.0KW | Diaphragm | Recoil starter | 0.65L | |

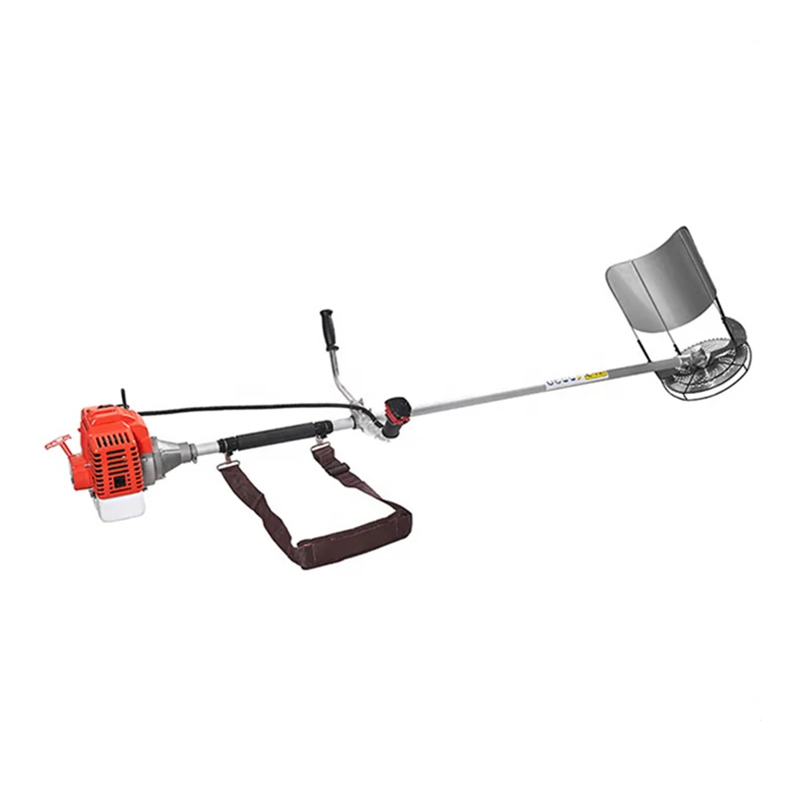

The sidepack type brush cutter is a high-performance agricultural and landscaping tool engineered for versatility and user comfort . Powered by a 52cc 2-stroke engine delivering 1.45 kW of power at 7000 rpm, it balances robust cutting capability with maneuverable design . The sidepack configuration distributes weight evenly across the user’s shoulder, reducing fatigue during extended operation . Equipped with interchangeable cutting attachments—including an 80T crop-harvesting blade, 3T bush-cutting blade, and nylon trimmer head—it handles tasks from crop harvesting to grass trimming . Constructed with stainless steel components and a solid gear drive, it withstands tough working conditions in agriculture and landscaping .
52cc 2-stroke engine with 1.45 kW output cuts through wood up to 60mm in diameter .
7000 rpm working speed ensures efficient cutting of dense undergrowth and mature crops .
Forced air cooling system prevents overheating during peak-hour use .
Sidepack shoulder harness with padded straps distributes 9.2 kg weight evenly .
Adjustable handlebar with anti-vibration grips improves control and reduces hand fatigue .
360-degree rotational cutting head enables operation at any angle .
Stainless steel drive shaft and clutch assembly ensure long service life .
Quick-connect attachment system allows blade changes in under 2 minutes .
Low fuel consumption (0.6 L/hour) reduces operational costs .
Cutting dry mature crops: wheat, paddy, maize, jowar, and soybean .
Harvesting green fodder with the 3T blade for livestock feeding .
Trimming crop residues 1-3 cm above soil surface .
Clearing dense undergrowth and unwanted weeds in orchards .
Trimming hedges and pruning small tree branches .
Maintaining lawns and garden borders with the nylon trimmer .
Clearing pathways and park areas of overgrowth .
Maintaining roadside vegetation and drainage ditches .
Preparing construction sites by removing thick brush .
Q: How often should the engine be serviced?
A: First service after 20 hours of use, then every 50 hours—includes oil change and air filter cleaning .
Q: What fuel-oil mixture is required?
A: Use a 25:1 ratio of unleaded petrol to 2-stroke engine oil for optimal performance .
Q: Which blade is best for thick bushes?
A: The 3T metal blade efficiently cuts bushes up to 4mm in diameter; for thicker growth, use the 80T blade .
Q: Can it be used on sloped terrain?
A: Yes, the balanced sidepack design and 360-degree cutting head make it suitable for hillsides .
Q: Is assembly required upon delivery?
A: Minimal assembly is needed—attach the handlebar and chosen blade using the included tool kit .
Q: What warranty is provided?
A: 1-year manufacturer warranty covering engine and mechanical components .
