Stretcher type and trolley type of garden power sprayers. Gasoline or diesel engine powered, these sprayers can come with a 30M -200M high pressure hose and are easy to use in all kinds of places. A wide variety of spray guns are available.
These products are mostly used in environmental disinfection or when spraying vegetables,rice,melon. They are specially designed for spraying on Orchards and hard to access terrain. And are also suitable for spraying on Apple, Grape, Coffee, Rubber Trees and Field Crops. They are useful in large farm houses or golf courses etc..
Model | DL-50L | DL-60L | DL-160L | DL-300L |
Plung Pump | 22Q2 | 22Q2 | 22Q2 | 22Q2 |
Output | 8L/min | 15-25L/min | 15-25L/min | 15-25L/min |
Rated | 2500 | 800-1000r/min | 800-1000r/min | 800-1000r/min |
Spraying Pressure | 1.5~2.5Mpa | 2.0-3.5Mpa | 2.0-3.5Mpa | 2.0-3.5Mpa |
Range | 10m | 10m | 10m | 12m |
Tank Capacity | 50L | 60L | 160L | 3000L |
Engine | 139F/GX35 gasoling | 139F/GX35 gasoline | 170 gasoline | 170 gasoline |
Engine power(kw) | 0.9 | 3.1 | 3.1 | 3.8 |
Engine speed(r/min) | 2599 | 2500 | 3600 | 3600 |
Fuel/Power supply | over 90# petrol | over 90# petrol | over 90# petrol | over 90# petrol |
hose and spray gun | 30m hose with spray gun | 30m hose with spray gun | 30m hose with spray gun | 30m hose with spray gun |
Lubricating of plunger pump | 30# lubricating | 30# lubricating | 30# lubricating | 30# lubricating |
G.W. | 36kg | 53 Kgs | 67 Kg | 103 Kg |
Carton size | 91*85*44 CM | 74*43*67 CM | 115*61*71 CM | 128*87*97 CM |

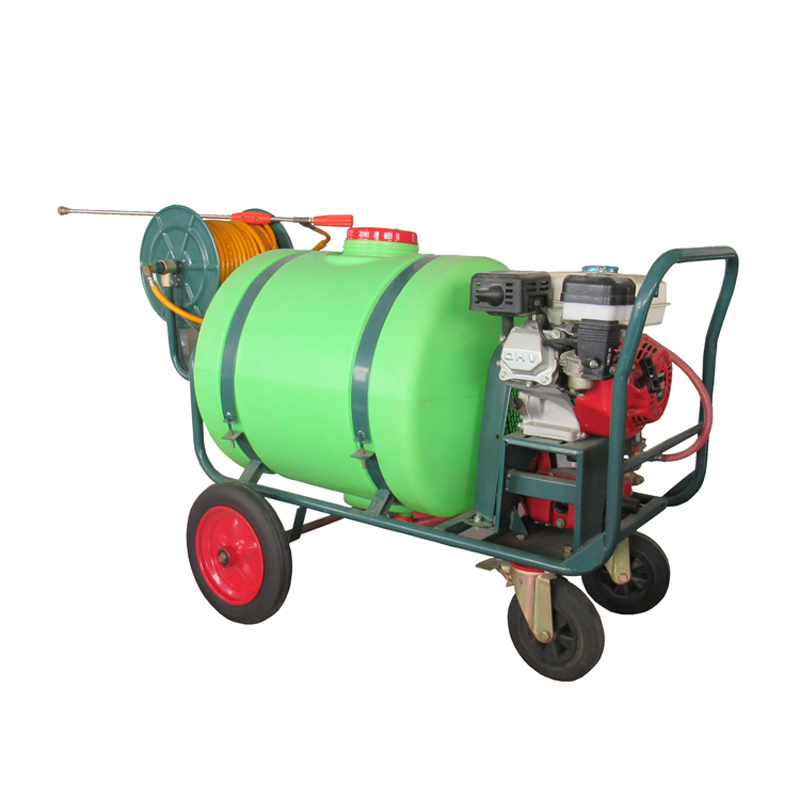

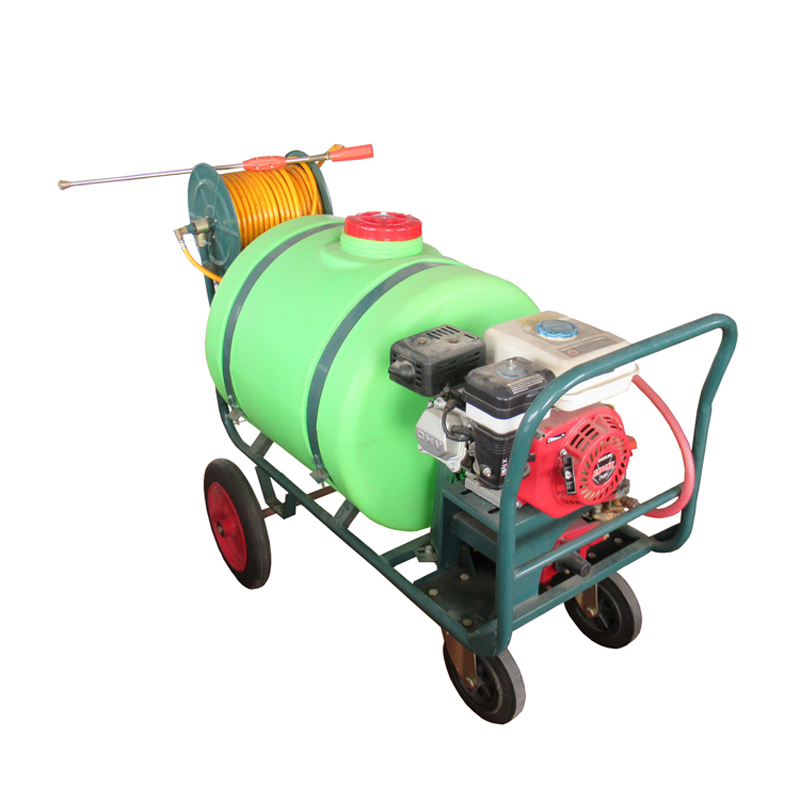

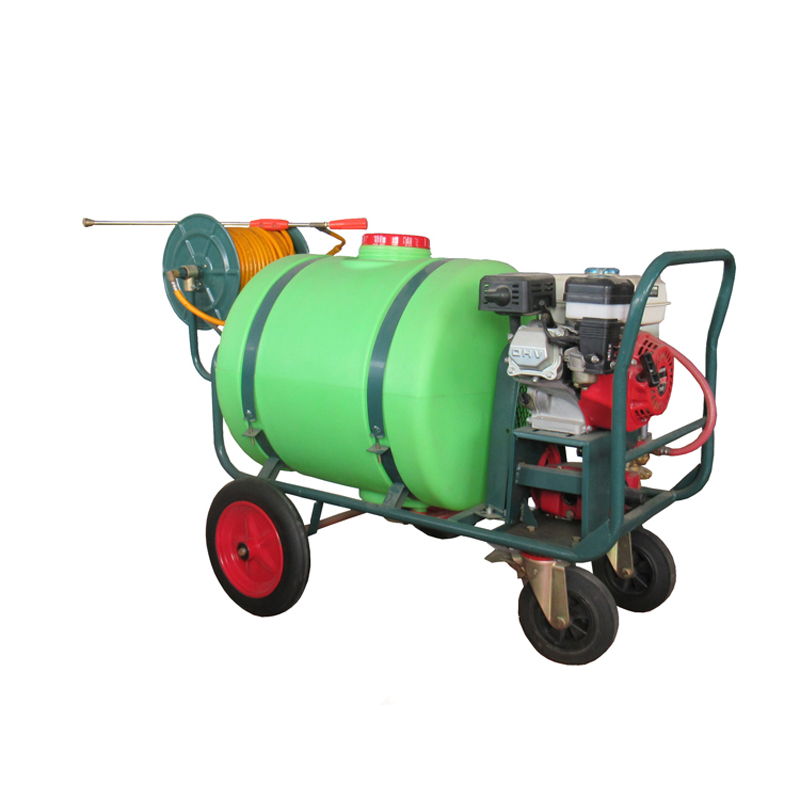

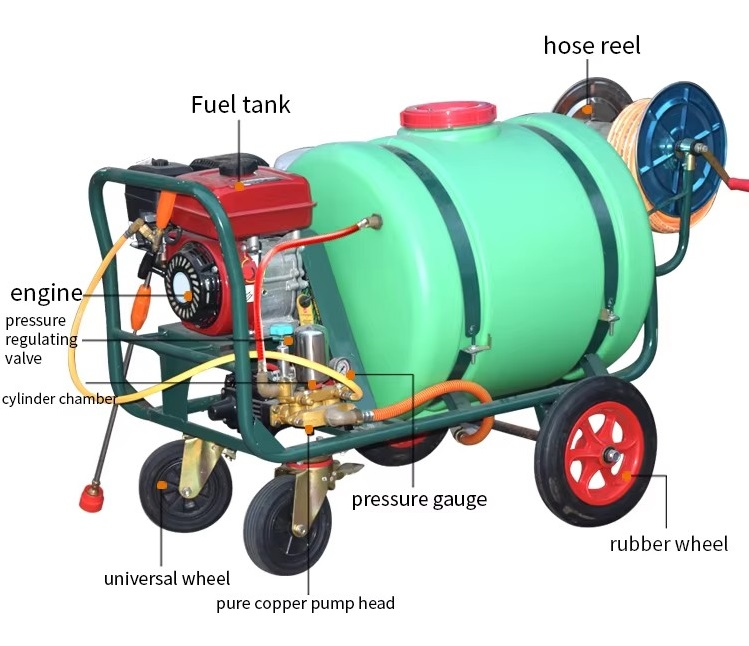

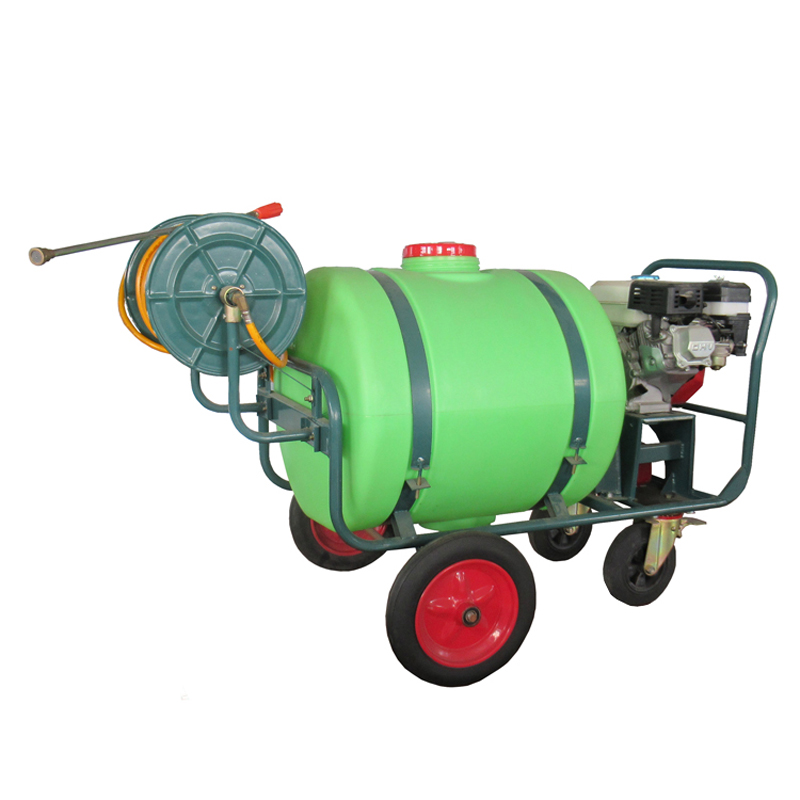

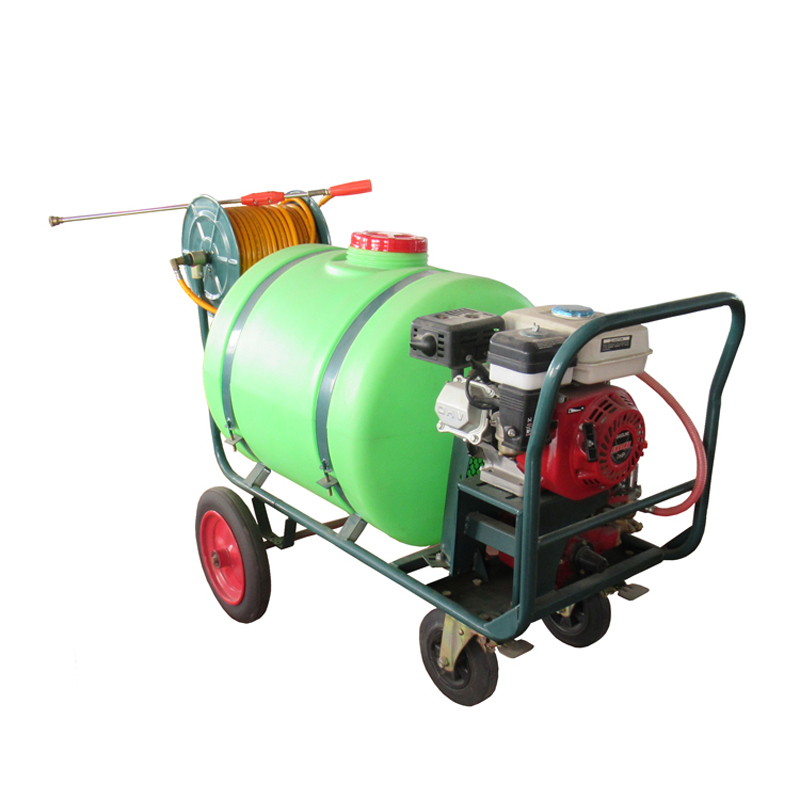

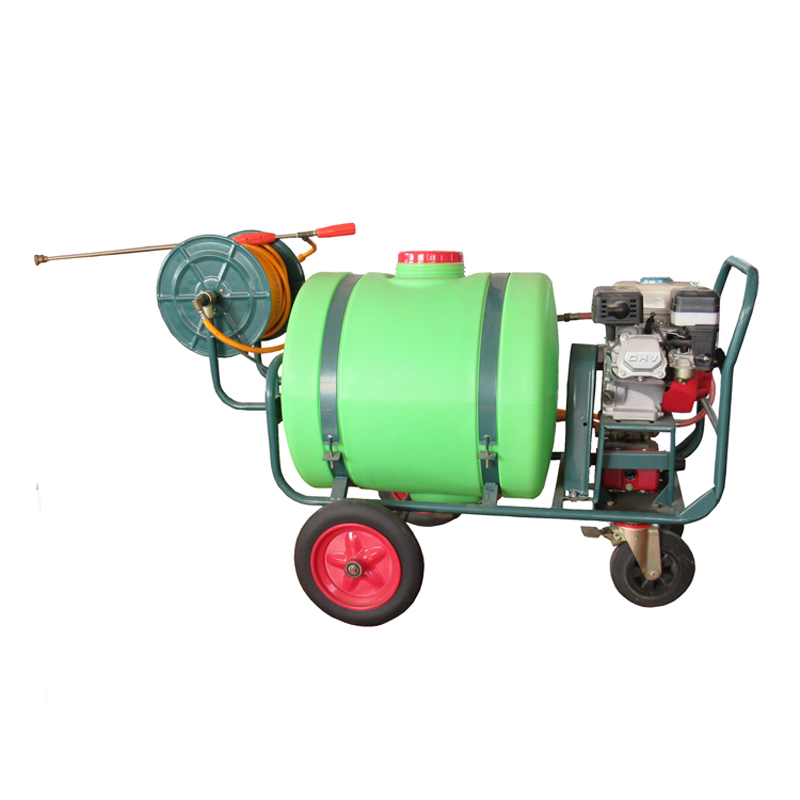

The 160L Trolley Power Sprayer is a heavy-duty large-capacity tool built for industrial-scale agricultural and disinfection tasks, featuring a 160L thick-walled polyethylene tank (5mm thickness) mounted on a reinforced steel trolley. Powered by a 4-stroke 79cc gasoline engine that delivers 3.0hp, it drives a high-pressure pump with a working pressure of 60 psi and a flow rate of 15-18 LPM—enabling coverage of 2.5-3 acres per tank. The trolley’s 30cm solid rubber tires (puncture-proof) and dual-wheel design ensure stability on rough terrain, while the 20-meter high-pressure hose extends reach for large fields. This sprayer is designed for large-scale farmers, plantation managers, and disaster response teams, where high efficiency and large capacity are critical.
160L 5mm-thick polyethylene tank with UV-stabilized material, resisting sun damage and cracking for 8+ years of outdoor use. The tank includes a level indicator to monitor liquid volume without opening the cap.
4-stroke 79cc engine with a large air filter (area: 120cm²) that traps dust and debris, ensuring clean air intake and extending engine life to 1000+ hours.
High-pressure pump made from cast iron with brass valves, handling high viscosity liquids (up to 300 cP) like liquid fertilizers and industrial disinfectants without wear.
Reinforced steel trolley frame with a weight capacity of 200kg (tank + liquid), using 3mm-thick steel tubes to support the large tank when full.
30cm puncture-proof solid rubber tires with a diamond tread pattern, providing stability on rocky or uneven terrain and eliminating the risk of flat tires in remote areas.
Push/pull handle with foam padding and a 180° rotating joint, allowing users to push or pull the trolley based on terrain—easier to navigate narrow paths when pulling.
20-meter high-pressure rubber hose (pressure-resistant up to 80 psi) that remains flexible in cold temperatures (-20℃ to 70℃), suitable for year-round use in diverse climates.
Pressure relief valve that automatically releases excess pressure (above 65 psi) to prevent hose bursts, with a pressure gauge mounted on the trolley for real-time monitoring.
Multi-nozzle manifold that connects up to 4 spray guns simultaneously, enabling 2-4 users to spray together—doubling or quadrupling work efficiency for large fields.
Ideal for spraying pesticides and herbicides in large crop farms (wheat, corn) and plantations (rubber, palm oil), where the 160L tank covers 2.5-3 acres per refill—reducing refueling and refilling time.
Suitable for liquid fertilizer application in sugarcane and cotton fields, leveraging the high flow rate (18 LPM) to cover 0.5 acres per hour.
Perfect for large-scale disinfection during disease outbreaks (e.g., livestock epidemics), spraying 1000+ square meters per hour with industrial disinfectants to control pathogen spread.
Useful for industrial facilities (warehouses, factories) to clean large floors and equipment, using the high pressure (60 psi) to remove heavy dirt and grease.
Q: How long does it take to empty the 160L tank at maximum flow rate?
A: At 18 LPM, the tank empties in ~8.9 hours—enough to cover 3 acres of crops without stopping for refills.
Q: How often should the cast iron pump be lubricated?
A: Add 50ml of pump oil (SAE 30) every 25 hours of use, and replace the oil every 100 hours. Clean the pump with diesel fuel every 50 hours to remove chemical residues.
Q: Is the trolley suitable for steep slopes?
A: It works on slopes up to 25° when pulled (not pushed), thanks to the dual rear tires and stable frame. Avoid slopes steeper than 25° to prevent tipping.
