| BACKPACK BRUSH CUTTER | |||||||
| Model No: | Gasoline Brush Cutter | Cutter: | Straight Metal Blade | ||||
| Type: | Backpack Brush Cutter | Power Source: | Petrol/Gas | ||||
| Transmittal mode: | Clutch,hard shaft drive,hard shaft plus soft shaft drive | Reduction ratio: | 17:22 | ||||
| Blade rotation direction: | Blade rotation direction: | Blade diameter: | 25.5CM | ||||
| Hard shaft length (mm): | 1330/1530 | Length of aluminum tube(mm): | 1300/1500 | ||||
| Pole Diameter: | 26/28mm | Cutting Type: | Swing Plastic Blade, Straight Metal Blade,Filament | ||||

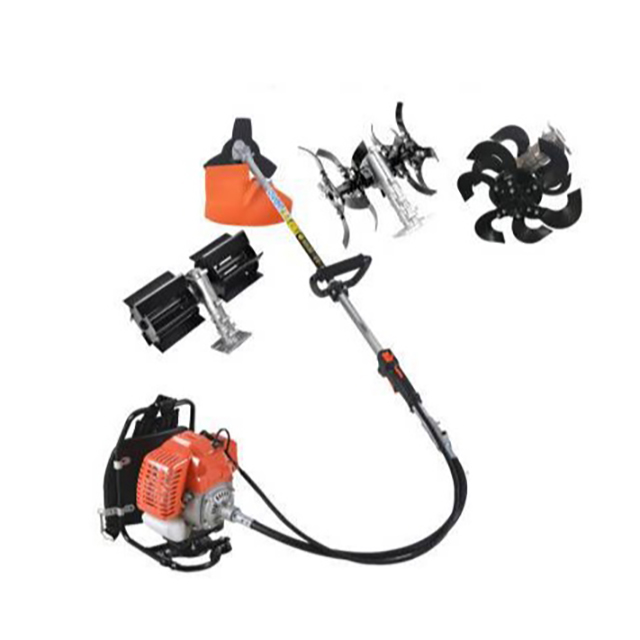

| BLADE: | Weeder,tiller,saw,trimmer,2T Blade,3T Blade,40T Blade,80T Blade,harvestor,Grainlifter (a set of machine inclued 1 piece 80T Blade) | ||||||
| ENGINE (4 MODEL CAN MATCH WITH MACHINE) | |||||||
| ENGINE MODEL | DISPLACE | ENGINE | MAX POWER | FUEL MINING RATIO | CARBURETOR | START MODE | FUEL TANK CAPACITY(L) |
| 1E40F-5 | 42.7CC | Air-cooled 2 stroke engine | 1.3KW | gasoline mixed with lubricating oil ratio of 25:1) | Diaphragm | Recoil starter | 1.2L |
| 1E44F | 52CC | Air-cooled 2 stroke engine | 1.65KW | gasoline mixed with lubricating oil ratio of 25:1) | Diaphragm | Recoil starter | 1.2L |
| 139F | 31CC | Air-cooled 4 stroke engine | 0.8KW | Diaphragm | Recoil starter | 0.6L | |
| GX35C | 35.8CC | Air-cooled 4 stroke engine | 1.0KW | Diaphragm | Recoil starter | 0.65L | |

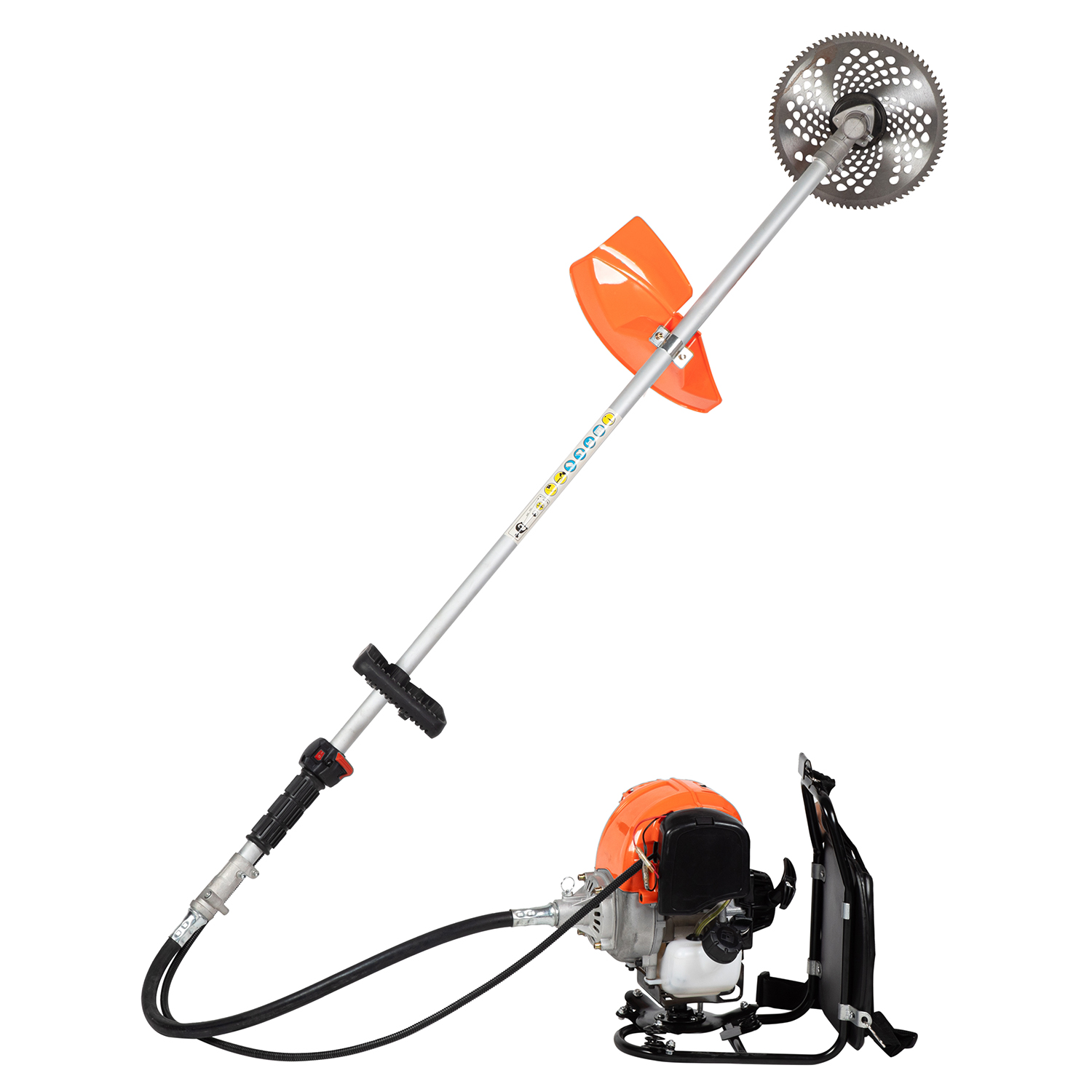

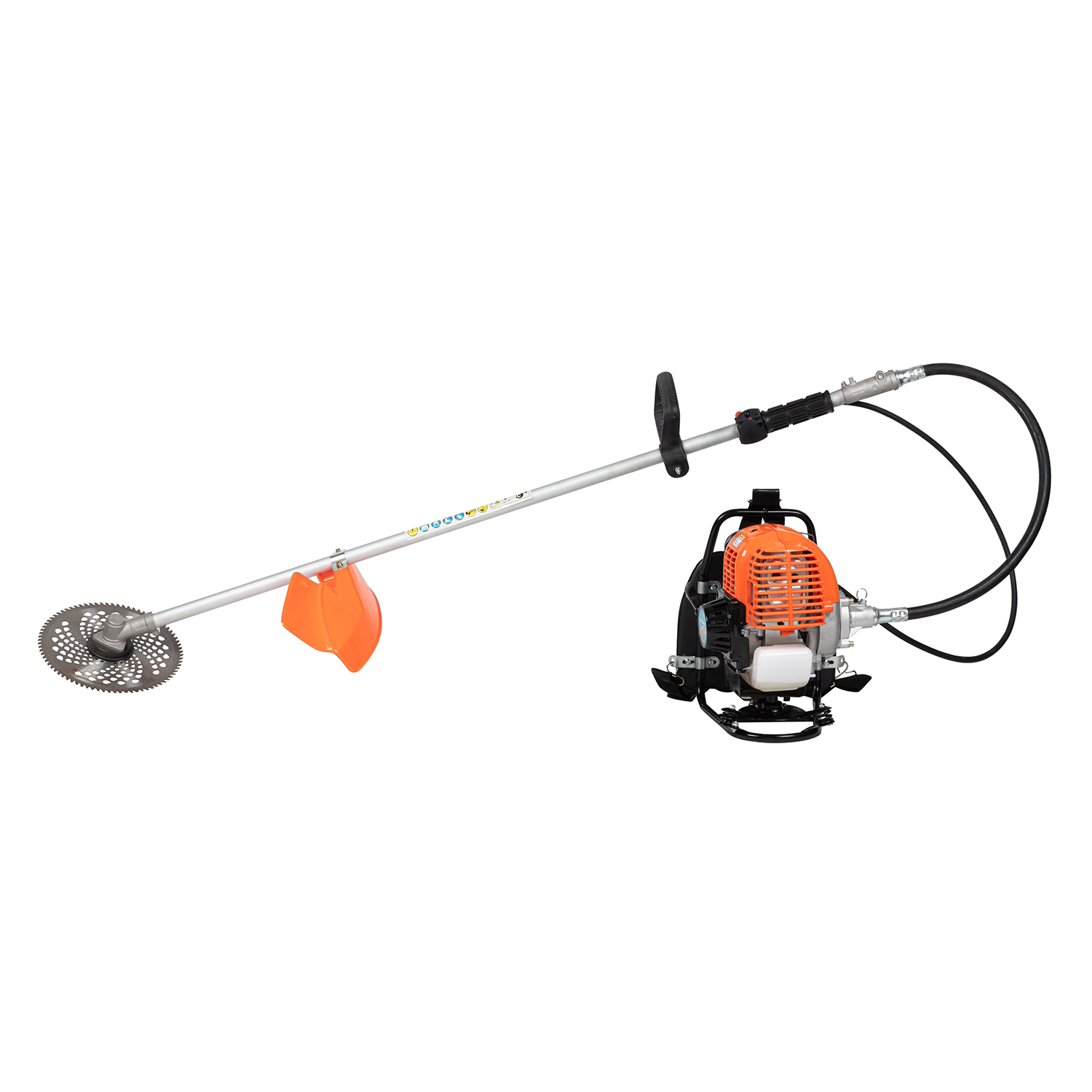

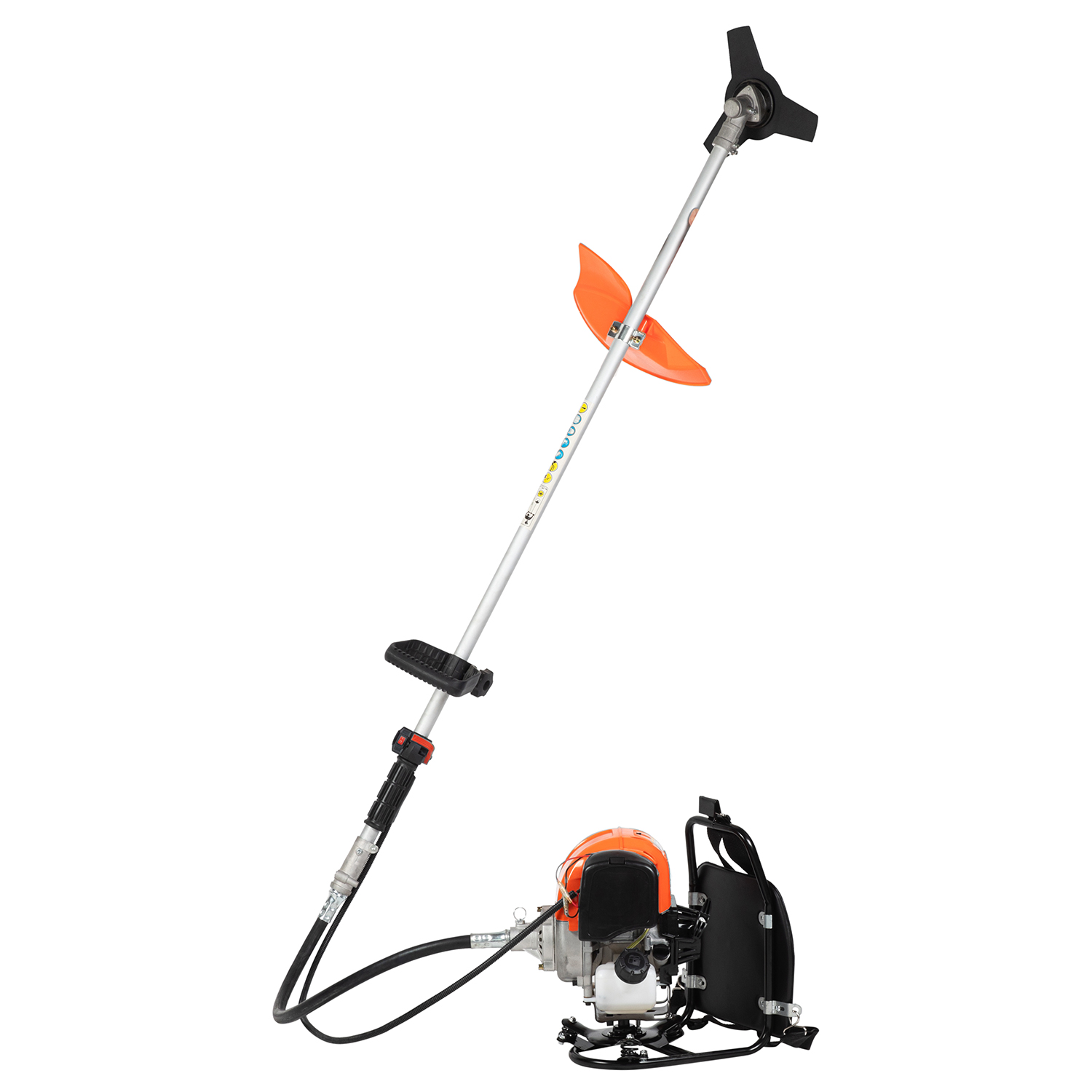

The backpack type brush cutter is a professional-grade tool designed for intensive commercial use, combining power and ergonomics for demanding cutting tasks . Powered by a 2-stroke 25.4 cc engine delivering 0.8 kW (1.1 hp) of power, it operates at 3000 rpm idle speed and drives metal blades or trimmer heads with precision . The backpack configuration distributes its 9.2 kg weight across the user’s back and shoulders, enabling all-day operation without excessive fatigue . Constructed with a sturdy steel frame and reinforced drive shaft, it excels in tackling thick weeds, long grass, and small branches on steep slopes or uneven terrain . Ideal for professionals in landscaping, agriculture, and municipal maintenance.
2-stroke 25.4 cc engine with 0.8 kW output cuts through dense vegetation and small branches .
Solid straight-shaft gear drive ensures efficient power transfer to cutting attachments .
Easy-start system reduces effort required for engine ignition .
Padded, adjustable shoulder straps and waist belt distribute weight evenly .
Ventilated back panel reduces sweating during extended use .
Compact design improves maneuverability in tight spaces (e.g., between trees) .
Heavy-duty clutch assembly and transmission withstand intensive use .
1.2-liter fuel tank provides extended operation time (up to 2 hours per fill) .
One-touch connector for quick attachment changes .
Maintaining hillside vegetation and erosion control areas .
Clearing ditches and embankments inaccessible to wheeled equipment .
Trimming steep or uneven ground in parks and nature reserves .
Managing large-scale lawns and golf courses .
Clearing overgrown areas for new landscaping projects .
Pruning hedges and shrubs in commercial properties .
Cutting grass and weeds in orchards and plantations .
Maintaining road verges and public right-of-ways .
Clearing crop residues after harvest .
Q: Can 2-stroke oil be used in the fuel tank?
Yes, 2-stroke oil is required—mix with petrol at 25:1 ratio to protect the engine from wear .
Q: How long does the fuel last during continuous use?
The 1.2-liter tank provides 1.5-2 hours of operation, depending on the attachment used .
Q: Is it suitable for beginners?
It’s designed for professionals, but the anti-vibration handle and balanced design make it manageable for trained beginners .
Q: What safety gear is recommended?
Wear eye protection, gloves, steel-toe boots, and hearing protection when operating .
Q: What does the warranty cover?
1-year warranty covers manufacturing defects in the engine, frame, and drive system .
Q: How can I get replacement parts?
Replacement blades, trimmer heads, and engine components are available through authorized distributors worldwide.
